Quick jump to: CFB-Plus Filters | ECB Carbon Block Filter

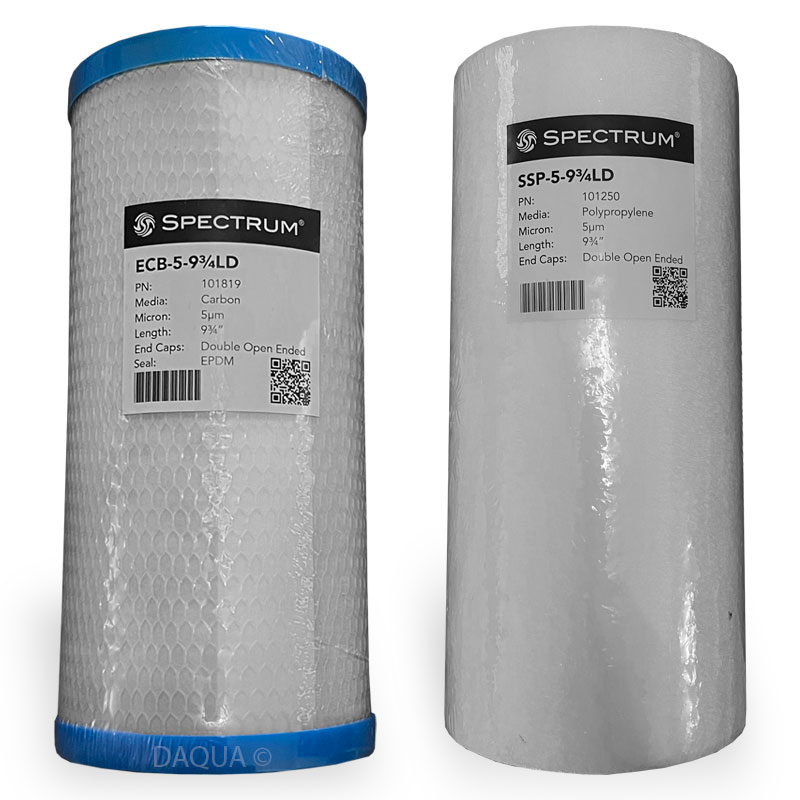

Spectrum ECB Carbon Block Filter and SSP Sediment Filter

Click to Enlarge

10" or 20" Carbon Block Filter and Spectrum SSP Sediment Filters

This includes:

1x 10" Spectrum 5 Micron ECB Carbon Block Filter (ECB-5-93/4) and 1 x 10" Spectrum 10" SSP Sediment Filter (SSP-5-97/8)

1x 20" Refyne 5 Micron Carbon Block Filter (REC-5M-20) and 1 x 20" Spectrum SSP Sediment Filter (SSP-5-20)

10" Filters fit into 10" Housings

20" Filters fit into 20" Housings

Carbon filters are key in preserving your membrane life so a high quality, efficient carbon block is key in protecting your membrane from chlorine attacks which will burn holes in the membrane sheet. Unlike many window cleaning suppliers, we opt for a higher-grade carbon block filter as it offers increased protection for your membrane.

The most commonly sold filters are the Spectrum CB range and the Spectrum ESP range. The CB range is a basic carbon block filter which has lower capacity and efficiency in comparison to the ECB 10" and Refyne 20" carbon filters.

The SSP range of filters have a higher dirt holding capacity compared to the ESP range. Due to this the SSP filter is better suited to the requirements for RO systems.

The Carbon filter is made from Acid Washed Bituminous Carbon which delivers chlorine reduction efficiency levels of 60%.

Not suitable for drinking water.

Spectrum 10" Carbon Block Specifications - ECB-5-93/4

5 Micron Rating
Technology:Carbon Block Cartridge
Material:Acid Washed Bituminous Carbon
Performance: Good Chlorine - Medium Sediment
Dimensions: 2.5" x 9.75", fits into 10" housing
Flow Rate: 3.8 l/m
Capacity: Chlorine Reduction 6,000 litres at 2ppm to 0.5ppm
Flow Rate (lpm): 3.8

Refyne 20" Carbon Block Specifications

Technology: Carbon Block Cartridge
Material: Acid Washed Bituminous Carbon
Performance: Good Chlorine - Medium Sediment
Micron: 5
Length: 20"
Diameter: Regular (2.5")
End-Cap: DOE - Double Open Ended
Seal: EPDM
Flow Rate: (lpm): 7.6
Capacity: Chlorine Reduction 12,000 litres at 2ppm to 0.5ppm

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

10" Carbon and Sediment Filters

1 - £19.58 ea
(£23.50 including vat and UK delivery)

2 - £13.33 ea
(£16.00 including vat and UK delivery)

5 - £9.67 ea
(£11.60 including vat and UK delivery)

10 - £8.25 ea
(£9.90 including vat and UK delivery)

15 + £7.76 ea
(£9.31 including vat and UK delivery)

20" Carbon and Sediment Filters

1 - £25.42 ea
(£30.50 including vat and UK delivery)

2 + £18.75 ea
(£22.50 including vat and UK delivery)

5 + £16.17 ea
(£19.40 including vat and UK delivery)

Box of 15 £213.33
(£256.00 including vat and UK delivery)

Click to Enlarge

Click to Enlarge

Refyne FibreOnyx Economic Carbon Filter 5µmm

RFO-5M-10 and RFO-5M-20

New Product

Refyne's newest carbon filter is made from activated coconut carbon bonded antimicrobial fibres which removes chlorine and sediment

With Chlorine reduction 52,500 litres @ 2mg/l* this makes it one of the top value carbon cartridges in the market.

Equipped with an antimicrobialagent which prevents premature blocking in order to maximise full chlorine capacity utilization.

This Carbon Filter is a excellent alternative to Pentair CFB-Plus10 based on price and performance.

Filter needs to be flushed for 15 minutes prior to first use.

* In some cases service life will not be reached if high content of Chlorine or Sediment in the supply water.

RFO-5M-10 Specifications

5 Micron Rating
Reduces: Chlorine and Sediment
Dimensions: 2.75" x 9¾", fits into 10" housing
Capacity: Chlorine Reduction - 52,500 litres @ 2mg/l
Flow Rate: 3.8 litres/min

RFO-5M-20 Specifications

5 Micron Rating
Reduces: Chlorine and Sediment
Dimensions: 2.75" x 20"
Capacity: Chlorine Reduction - 105,000 litres @ 2mg/l
Flow Rate: 7.6 litres/min

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

Refyne 10" FibreOnyx Carbon Filter RFO-5M-10

1 - £25.00 ea
(£30.00 including vat and UK delivery)

2 + £20.00 ea
(£24.00 including vat and UK delivery)

3 + £16.67 ea
(£20.00 including vat and UK delivery)

Refyne 20" FibreOnyx Carbon Filter RFO-5M-20

1 - £34.17 ea
(£41.00 including vat and UK delivery)

2 + £28.33 ea
(£34.00 including vat and UK delivery)

3 + £25.83 ea
(£31.00 including vat and UK delivery)

Pentair CFB-Plus10 Fibredyne Filter and Spectrum SSP Sediment Filter

Click to Enlarge

Pentair CFB-PLUS10 Fibredyne and Sediment Filter

This includes:

10" Pentair CFB-PLUS10 Fibredyne Filter

10" 5 Micron Sediment Filter

Will fit in 10" Housings

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

10" Pentek CFB-PLUS Fibredyne and Sediment Filters

1 - £30.00 ea
(£36.00 including vat and UK delivery)

2 + £25.00 ea
(£30.00 including vat and UK delivery)

5 + £21.50 ea
(£25.80 including vat and UK delivery)

20" Pentek CFB-PLUS20 Fibredyne and Sediment Filters

1 - £35.42 ea
(£42.50 including vat and UK delivery)

2 + £30.42 ea
(£36.50 including vat and UK delivery)

Pentair CFB-PLUS10 and CFB-PLUS20 Fiberdyne Filters

Click to Enlarge

Pentair Fiberdyne CFB-PLUS Filter

CFB-PLUS10 and CFB-PLUS20

Pentek Fibredyne combines carbon and sediment blocks into one cartridge

Removes Sediment and Chlorine

Available in 10" and 20"

CFB-PLUS10 Specifications

5 Micron Rating
Reduces: Chlorine and Sediment
Dimensions: 2.88" x 9.75", fits into 10" housing
Flow Rate: 3.8 l/m
Capacity: Chlorine Reduction 37,800 litres at 2ppm to 0.5ppm
Temp Range: 40 - 170 F

CFB-PLUS20 Specifications

5 Micron Rating
Reduces: Chlorine and Sediment
Dimensions: 2.88" x 20", fits into 20" housing
Flow Rate: 7.6 l/m
Capacity: Chlorine Reduction 75,700 litres at 2ppm to 0.5ppm
Temp Range: 40 - 170 F

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

10" Pentair CFB-PLUS10

1 - £26.67 ea
(£32.00 including vat and UK delivery)

2 - £22.50 ea
(£27.00 including vat and UK delivery)

3 + £20.00 ea
(£24.00 including vat and UK delivery)

CFB-PLUS10 Box of 12

£200.00
(£240.00 including vat and delivery)

20" Pentair CFB-PLUS20

1 - £43.33 ea
(£52.00 including vat and UK delivery)

2 + £38.33 ea
(£46.00 including vat and UK delivery)

3 + £35.83 ea
(£43.00 including vat and UK delivery)

CFB-PLUS20 Box of 12

£381.67
(£458.00 including vat and delivery)

Click to Enlarge

Spectrum SSP Sediment Filter 5 Micron

SSP-5-9 and SSP-5-20

TruDepth Standard Spun Cartridge

5 micron - Removes sediment in the form of dirt, sand and rust

WRAS approved

Available in 10" and 20"

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

10" Sediment Filter

Pack of 2 - £17.50
(£21.00 including vat and UK delivery)

Pack of 5 - £24.17
(£29.00 including vat and UK delivery)

Pack of 10 - £33.00
(£40.00 including vat and UK delivery)

Box of 24 - £57.08
(£68.50 including vat and UK delivery)

20" Sediment Filter

Pack of 2 - £21.67
(£26.00 including vat and UK delivery)

Pack of 3 - £25.00
(£30.00 including vat and UK delivery)

Pack of 6 - £35.00
(£42.00 including vat and UK delivery)

Box of 12 £57.50
(£69.00 including vat and UK delivery)

Click to Enlarge

Spectrum Economic Carbon Block Filter 5µm 93/4"

ECB-5-93/4

Higher grade carbon than commonly used Spectrum CB-5-93/4 filter improving chlorine removal efficiency to 60% which is higher than CB range or cheaper carbon blocks you find on Ebay and Amazon..

Manufactured using acid washed bituminous carbon, a highly microporous structure targets larger organic molecules such as benzene

5 micron - Removes chlorine which at high levels can damage your R/O membrane.

Specifications

Technology: Carbon Block Cartridge
Material: Acid Washed Bituminous Carbon
Performance: Good Chlorine - Medium Sediment
Micron: 5
Length: 9 3/4"
Diameter: Regular (2.5")
Flow Rate (lpm): 3.8

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

1 - £19.17 ea
(£23.00 including vat and UK delivery)

2 + £12.50 ea
(£15.00 including vat and UK delivery)

5 + £8.33 ea
(£10.00 including vat and UK delivery)

10 + £7.08 ea
(£8.50 including vat and UK delivery)

15 + £6.50 ea
(£7.80 including vat and UK delivery)

Click to Enlarge

Refyne Economic Carbon Block Filter 5µm 20"

REC-5M-20

Higher grade carbon than commonly used Spectrum CB-5-20 filter improving chlorine removal efficiency to 60% which is higher than CB range or cheaper carbon blocks you find on Ebay and Amazon..

Manufactured using acid washed bituminous carbon, a highly microporous structure targets larger organic molecules such as benzene

5 micron - Removes chlorine which at high levels can damage your R/O membrane.

Specifications

Technology: Carbon Block Cartridge
Material: Acid Washed Bituminous Carbon
Performance: Good Chlorine - Medium Sediment
Micron: 5
Length: 20"
Diameter: Regular (2.5")
Flow Rate (lpm): 7.6

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

1 - £25.84 ea
(£31.00 including vat and UK delivery)

2 + £18.33 ea
(£22.00 including vat and UK delivery)

5 + £14.17 ea
(£17.00 including vat and UK delivery)

Box of 15 £183.33 ea
(£220.00 including vat and UK delivery)

Click to Enlarge

Refyne Standard Powder Activated Carbon Block Filter 5µm 20"

RSC-5M-20

This Standard Carbon Filter is a higher capacity than the Economic Carbon Filter

Material: Powder Activated Coconut Carbon

Removes chlorine which at high levels can damage your R/O membrane

Food grade high capacity taste and odour reduction

WRAS approved cartridge

Micron 5

Length: 20"

Diameter: Regular (2.5")

Chlorine reduction - approx 26,000 litres @2mg/l, approx 227,500 litres @0.2mg/l

Prices include delivery to UK Mainland
(ex. Scottish Highlands)

1 - £26.67 ea
(£32.00 including vat and UK delivery)

2 + £20.00 ea
(£24.00 including vat and UK delivery)

5 + £16.67 ea
(£20.00 including vat and UK delivery)

15 + £14.17 ea
(£17.00 including vat and UK delivery)
